Semiconductors Quartz Opaque High Purity PQ052E Quartz Raw Material

Brand Name : PQ

Model Number : PQ052E

Certification : MSDS, Rohs, REACH, ISO, GS, BV, Intertek

Place of Origin : China

MOQ : 50kg

Price : FOB SHANGHAI

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 2000 metric ton per month

Delivery Time : 30-45 days

Packaging Details : Clean plastic sealing bag + master carton + wooden crate

Porosity : 0.2296%

Bore Size : <20μm

Highest Continuous Working Temperature - Short Time (℃) : 1300

Highest Continuous Working Temperature - Long Time (℃) : 1150

Coefficients of Thermal Expansion (K-1) : 0.47*10-6 (20-320℃)

Thermal Conductivity (20℃, W/m·k) : 0.845

Specific Heat (J·G-1·K-1) : 0.6559

Permittivity (500MHZ, 20℃) : 3.8 (500MHZ, 20℃)

Dielectric Loss : 0.0001

Tensile Strength (Mpa) : 50

Flexural Strength (Mpa) : 83

Torsional Strength (Mpa) : 29

Contact Now

Natural Quartz Materials (Opaque) High Purity by PQ - PQ052E, for Semiconductor & High-End Optics Industries

Opaque quartz raw material for the semiconductor industry is a high-purity, sintered silica (SiO₂) material characterized by numerous micron-sized bubbles that block light and enhance thermal insulation. It is derived from high-purity quartz sand and used to manufacture critical, high-temperature, and corrosion-resistant components like crucibles, diffusion tubes, and furnace components.

Semiconductors Quartz Opaque High Purity PQ052E Quartz Raw Material

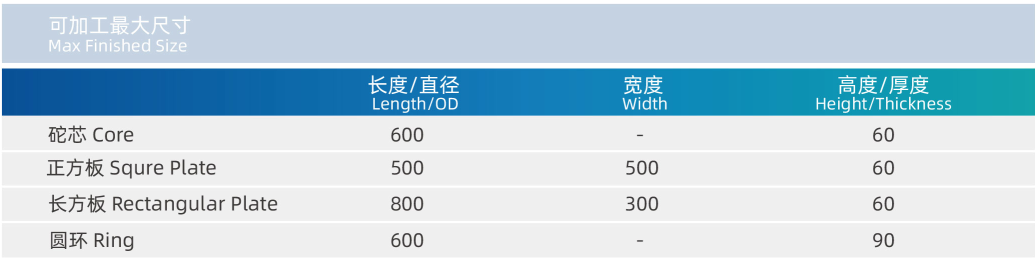

PRODUCT SIZE
